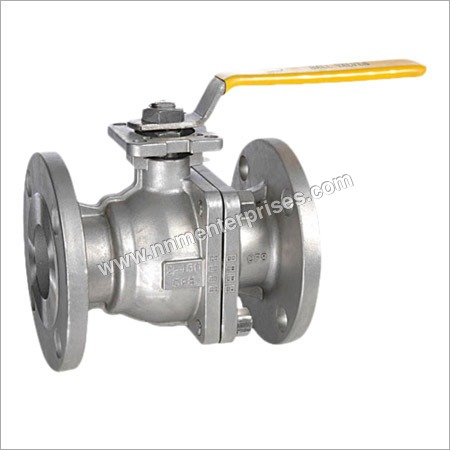

Agriculture Ball Valves

Agriculture Ball Valves
Agriculture Ball Valves
Product Code : ABV
Brand Name : VTI
Product Description

Agriculture Ball Valves



We are a superior manufacturer of a wide gamut of Agriculture Ball Valves (Screwed-Socket Welded Ends). These are designed and manufactured keeping in mind all the vast quality norms of the industry. Moreover, our offered range of Agriculture Ball Valves (Screwed-Socket Welded Ends) is broadly appreciated by our customers & available at nominal rates due to features such as sturdy construction, dimensional accuracy, durability, low operating torque, blowout proof design & anti-static device and so on.

KEY FEATURES

  • Low operating torque
  • Blowout proof design & anti-static device
  • Design Std.: BS5351, Testing as per Bs6755 Part I
  • Screwed ends to BS21 (Parallel/taper)/ANSI/ASME 120.1 (NPT) threads
  • Socket weld ends as per ANSI B 1611
  • Fire as per API 607/BS 6755 Part II
  • Floating ball design

ON REQUEST

  • Extended spindle for cryogenic service
  • Locking arrangement
  • Gear/Pneumatic/Electrical Actuator
  • Metal Seated Valve
  • NACE as per MR-01-75
  • Extended nipple

PLEASE CONSULT US FOR

  • High temp/Cryogenic service
  • Other material
  • Other trim material
  • Fully jacketed valve
  • Other end connections
  • Top entry design

MATERIAL OF CONCLUSION

  • HANDLE: CS galvanized
  • BODY SEAL: Graphoil/PTFE
  • THRUST WASHER: PTFE
  • STEM SEAL: Graphoil/PTFE
  • STEM: SS410/SS304/SS316
  • BODY SEAT: PTFE/GFT/CFT
  • BALL: 13% Cr./A105 ENP Coated/CFT/CF8/M
  • END PIECE: A105/A105 ENP Coated/A 182 Gr. F304/316
  • BODY: A105/A105 ENP coated/A 182 Gr. F304/316
  • All fasteners are as per A193 Gr. B7 / A194 Gr. 2H. Other grades on request.
