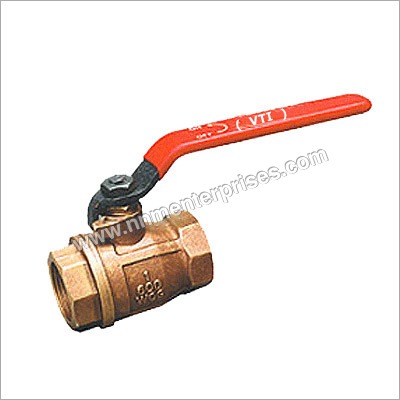

Ball Valves

Ball Valves
Ball Valves
Product Code : BV
Brand Name : VT
Product Description

Ball Valves



We are a trusted manufacturer of a wide gamut of Ball Valves. Designed and manufactured using premium quality materials, these vales are offered in two standard sizes. These valves are best known for features such as low maintenance, durable, flawless performance, and so on. These products are offered at reasonable rates and as per the requirements of our customers. Our range of Ball Valves is timely and safely delivered to clients end.



KEY FEATURES

  • Maximum Working Pressure: 14.6 Kg/cm2 (200psig )
  • Max . Permissible Temp.: 225°C (437°F)
  • Hydraulic Test Pressure: 21.1 kg/cm2 (300psig )



TECHNICAL SPECIFICATIONS



Part No. Name of Parts Material Specification
1 HANDLE M.S. IS:226
2 NUT M.S. IS:226
3 GLAND NUT LEADED TIN BRONZE IS:318 LTB2
4 GLAND PACKING
PTFE
5 STEM SEAL
PTFE
6 SEAT
PTFE
7 BALL S.S AISI-410
8 BODY LEADED TIN BRONZE IS:318 LTB2
9 STEM S.S AISI-410
10 BONNET LEADED TIN BRONZE IS:318 LTB2


NOMINAL SIZE   A L H
Inch MM
1/2" 15   1/2"BSP 60 50
3/4" 20   3/4"BSP 62 55
1" 25  1"BSP 72 70
1-1/4" 32 1-1/4"BSP 85 82
1-1/2" 40 1-1/2"BSP 99 92
2" 50 2"BSP 120 105
2-1/2" 65 2-1/2"BSP 142 250
3" 80 3"BSP 161 280
4" 100 4"BSP 210 325
